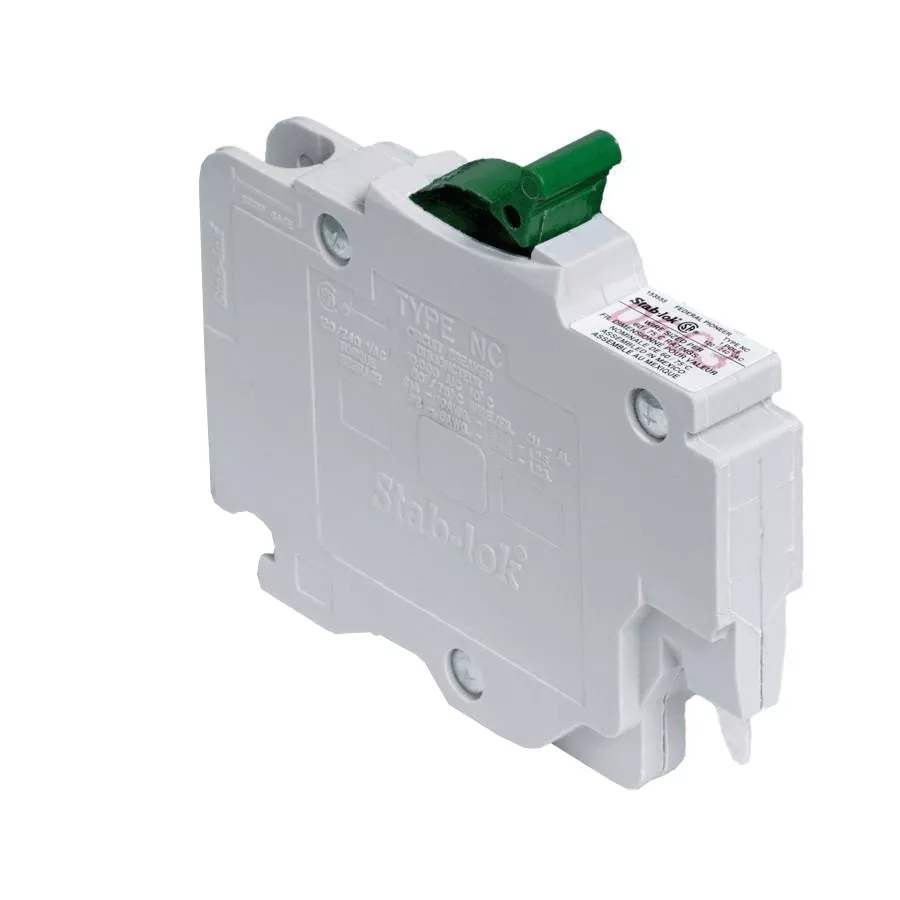

Federal Pioneer 30 Amp Single Pole Circuit Breaker
Federal Pioneer 30 Amp Single Pole Circuit Breaker

Federal Pioneer
30 Amp Single Pole Circuit Breaker

39.99

Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2" thick per pole, allows for the reduction of the size and weight of the loadcentre. This breaker will work only in Federal Pioneer Stab-lok branded residential panels.

Features

  • Provides overload and short circuit protection (120Vac)
  • 10,000 Amperes Interrupting Rating (AIR)
  • Lug Range: #14 - #6
  • Accepts aluminum/copper conductors
  • Thermal magnetic trip protection
  • Typical applications for a single pole 15 Amp breaker include lighting and receptacle circuits in a home and requiring a wire size of 14-2
  • Automatic trip reset
  • Arc resistant case
  • Calibrated at 40 degrees C
  • Trip free operation
  • Quick-make, quick break, self locking line side stab connection
  • CSA approved to be installed only in Federal Pioneer Stab-lok branded residential panels

Specifications

Item Number
3678577
Unit of Measurement
EA
Amps
30
Assembled Length
3"
Assembled Height
3.4"
Assembled Width
0.5"
